Filament Basket

2024, Personal Work

Furniture

>

Woodwork

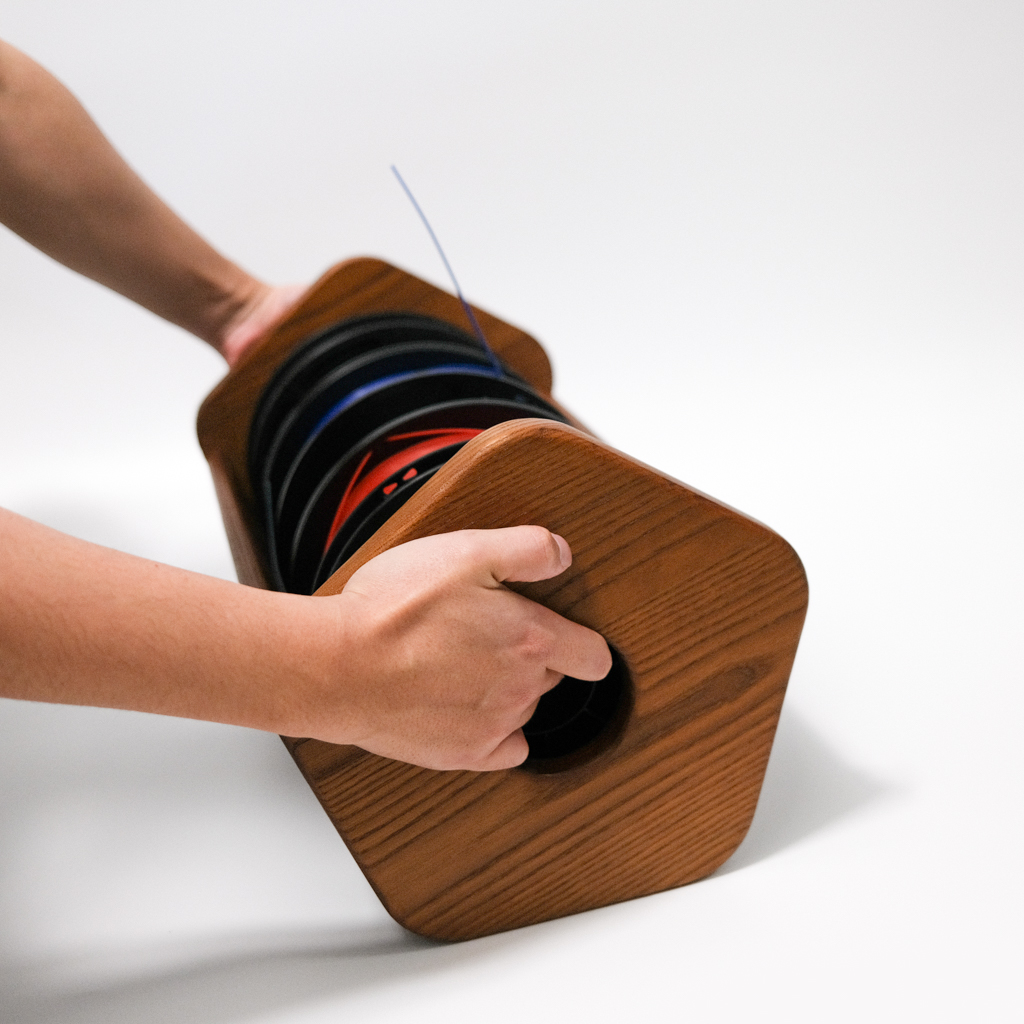

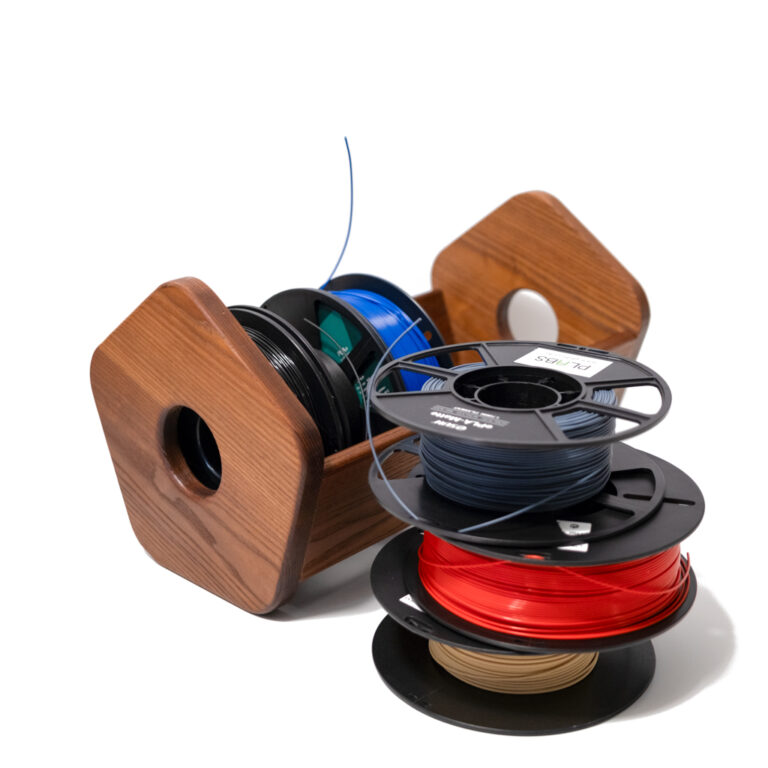

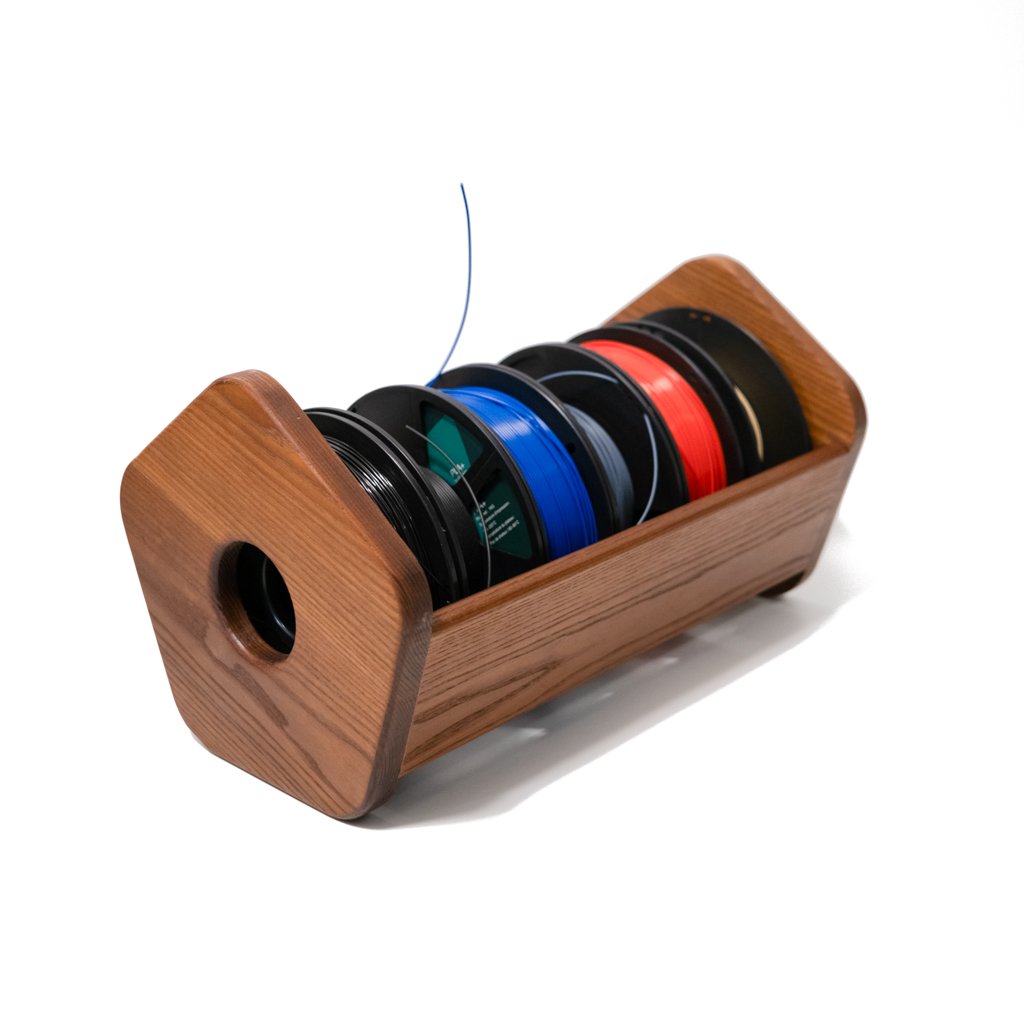

This filament basket was designed to hold up to six spools, making it easy to carry them around or replace them on the spot for immediate use. It was crafted from charred ash wood and finished with natural OSMO oil.

Tap the image to open it in full view.

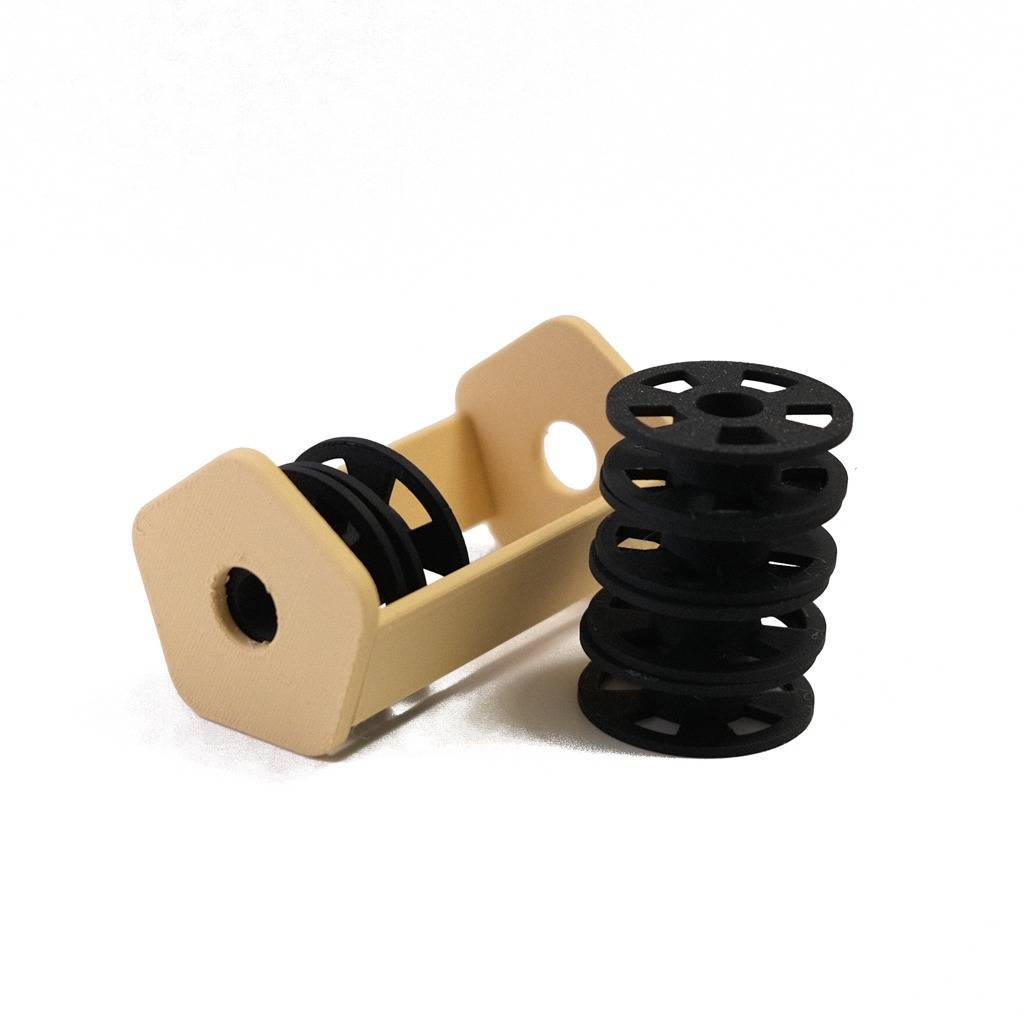

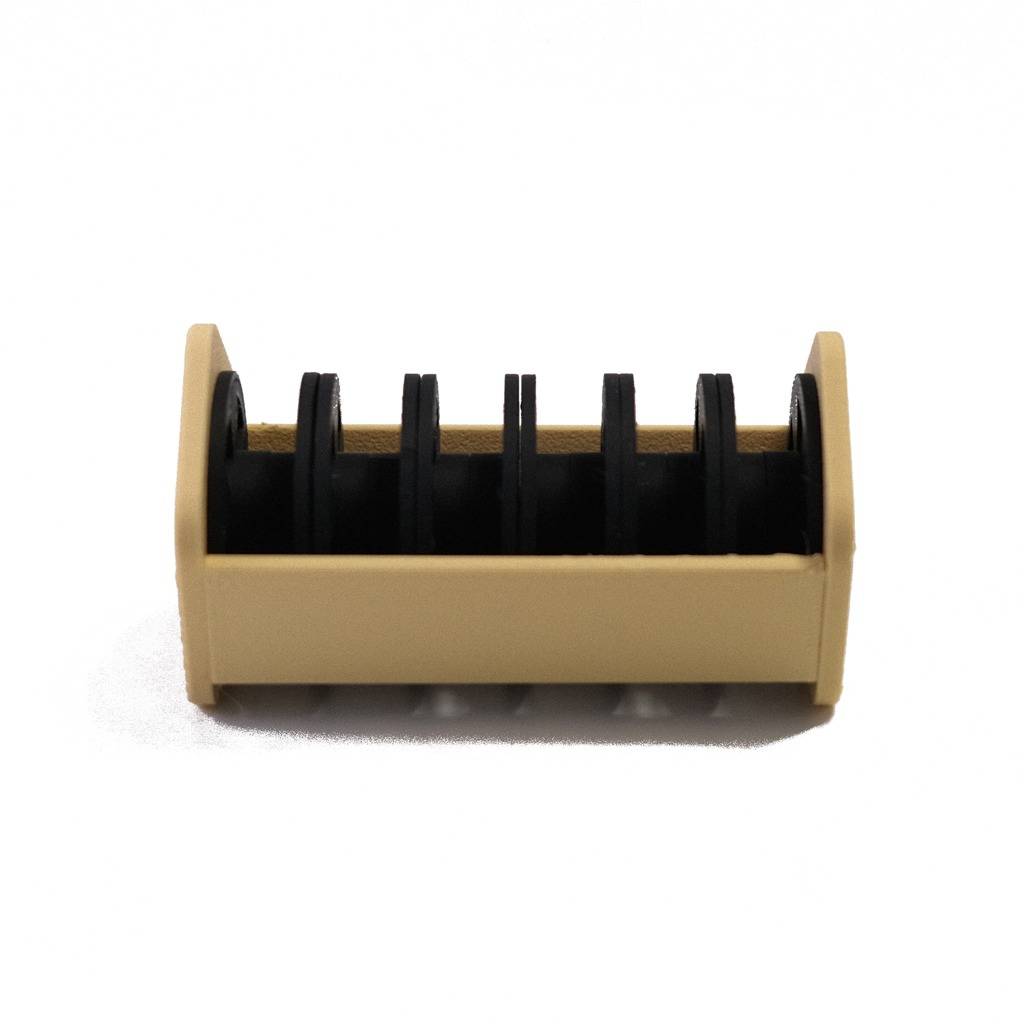

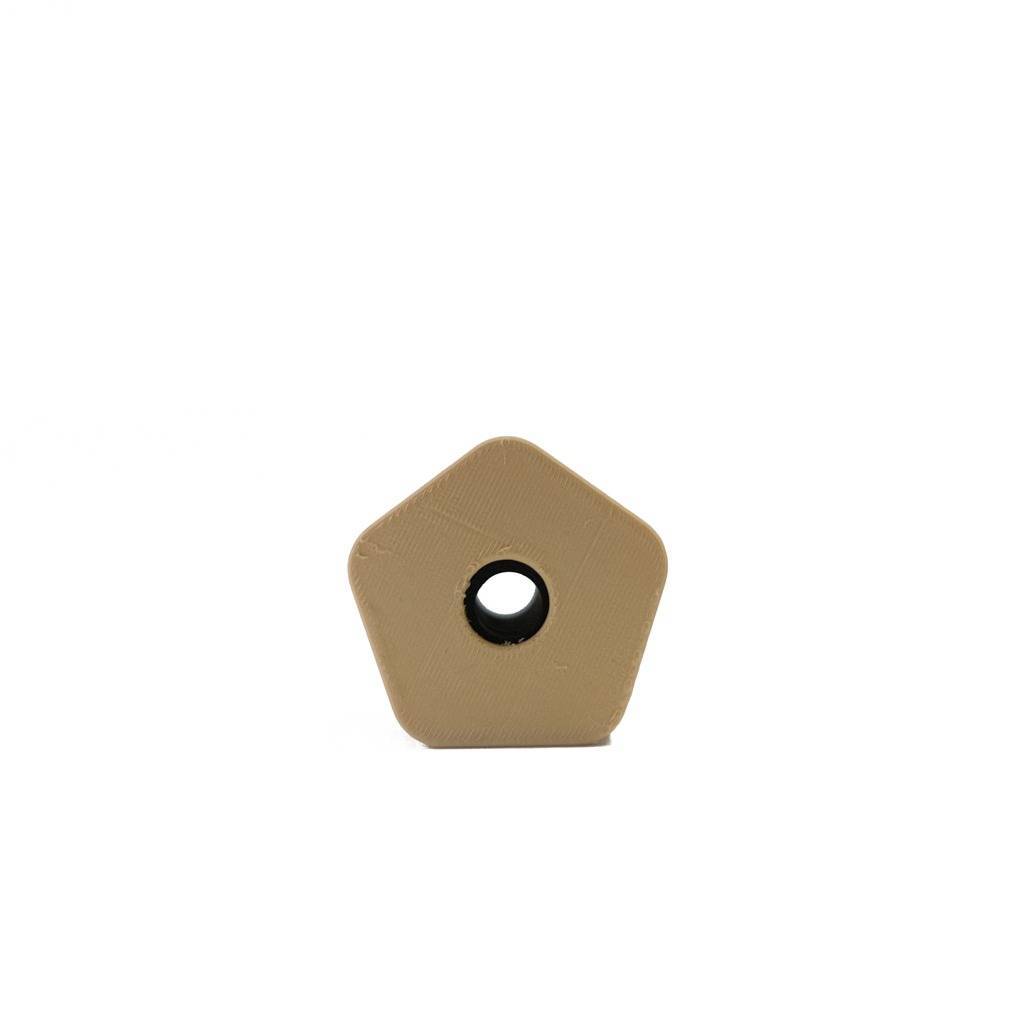

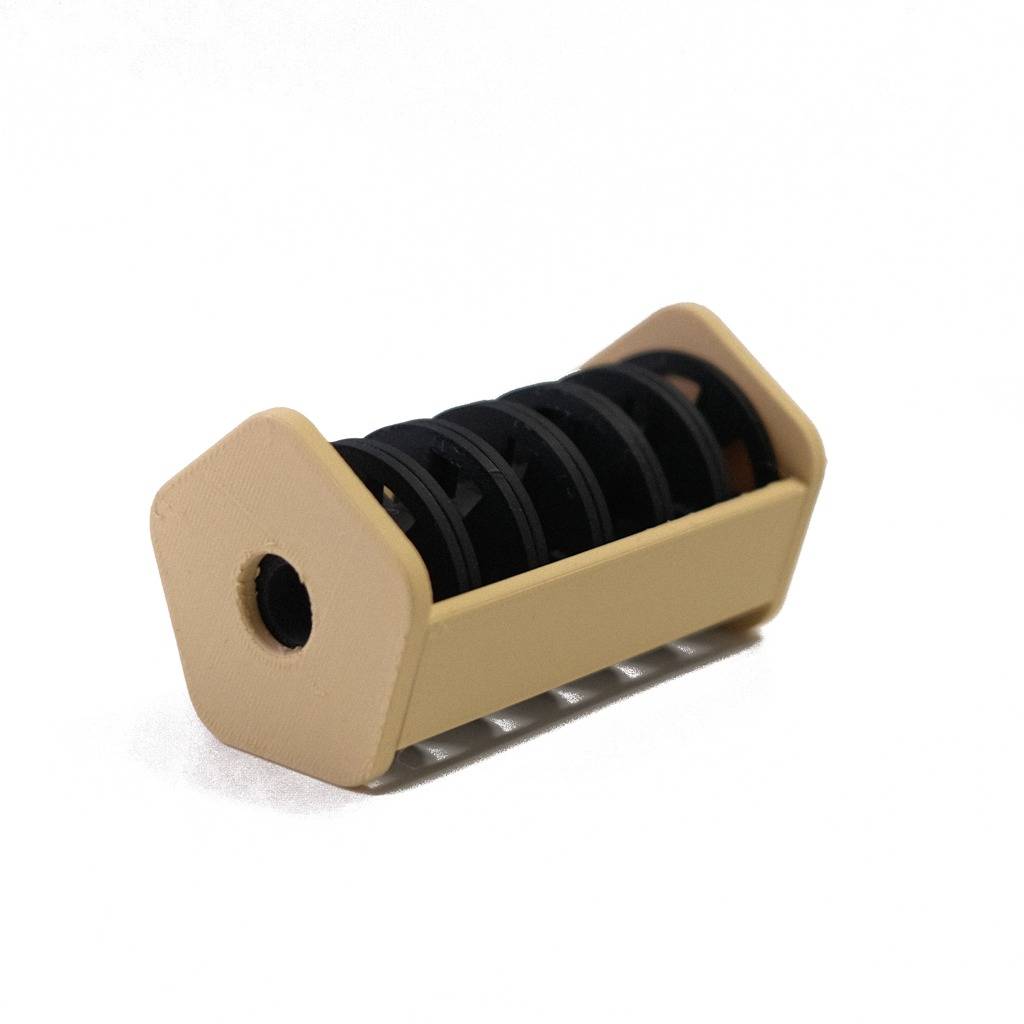

3D Printed Prototype

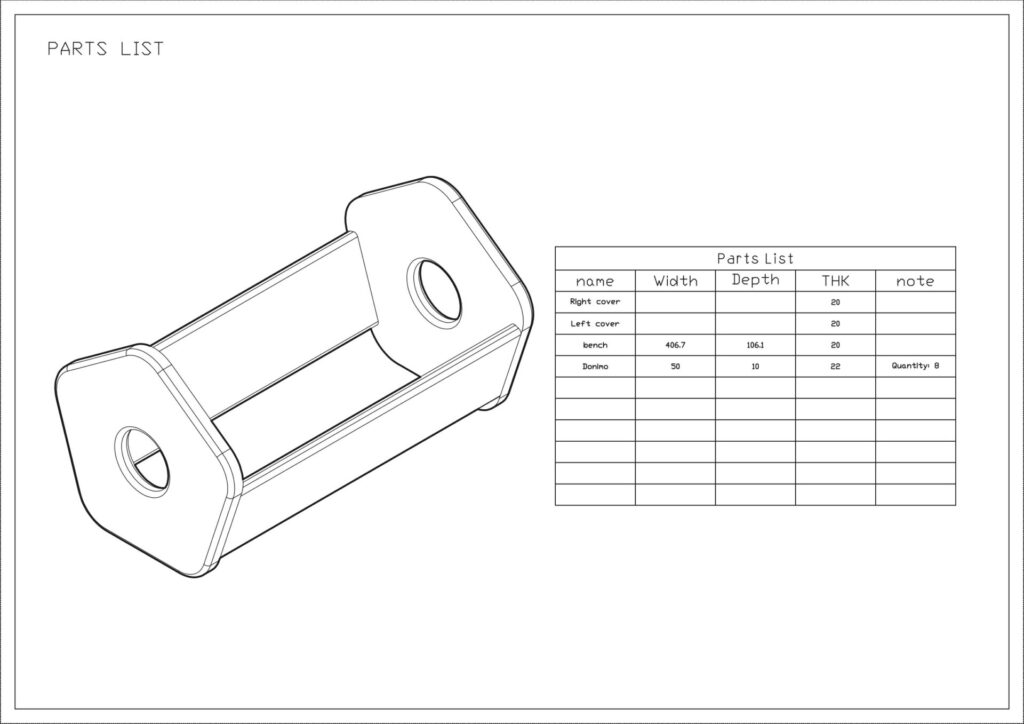

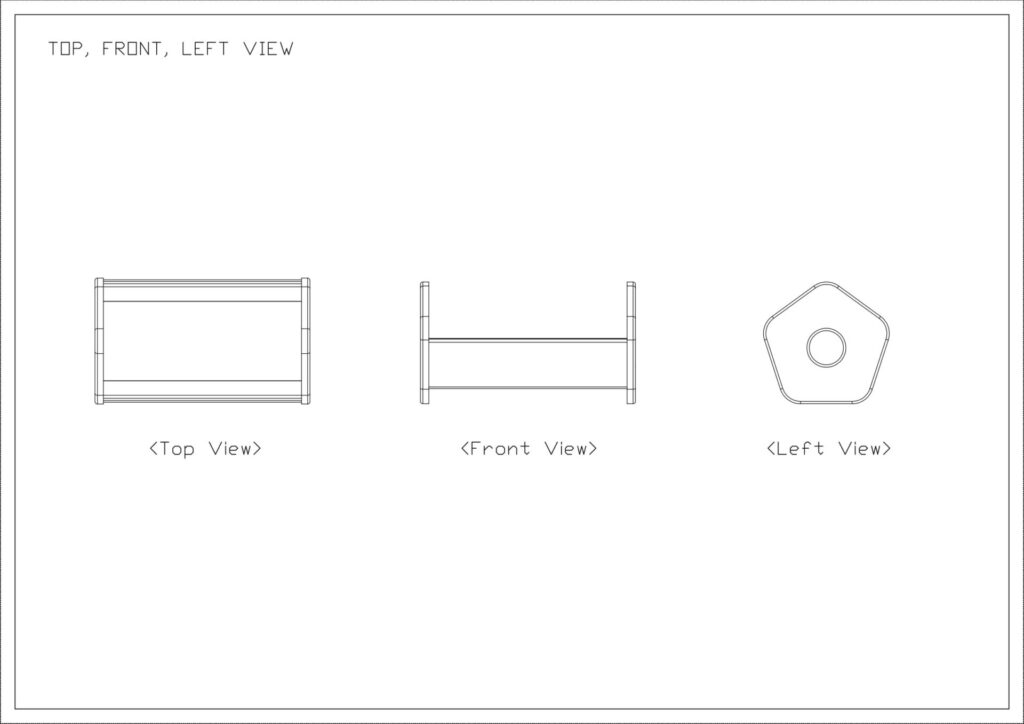

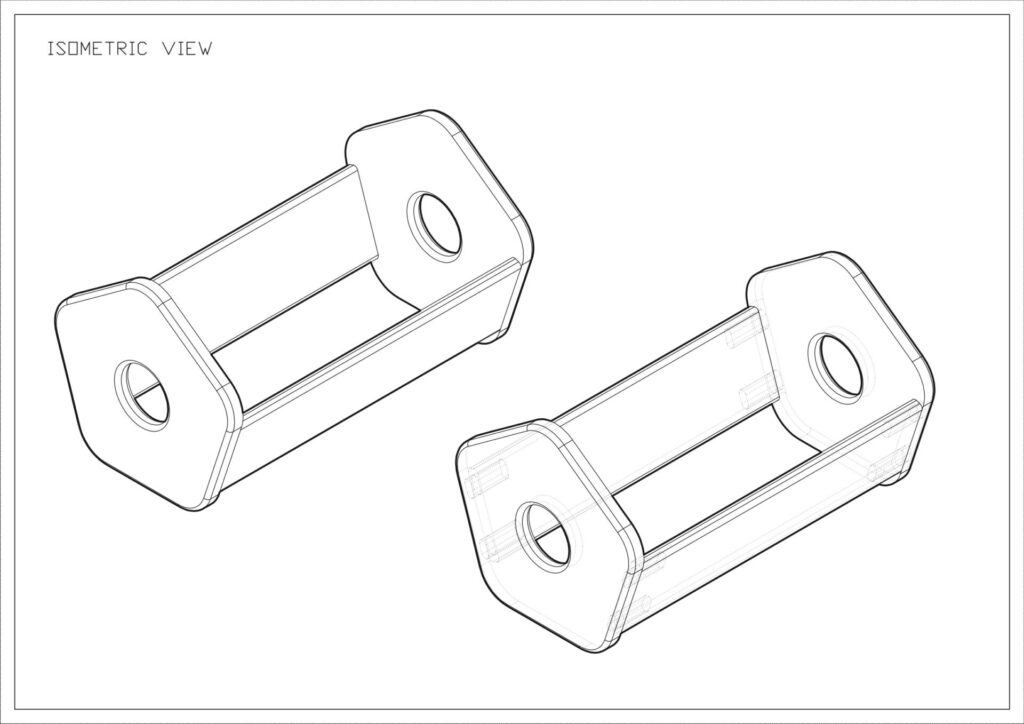

Drawings

Behind

Work image

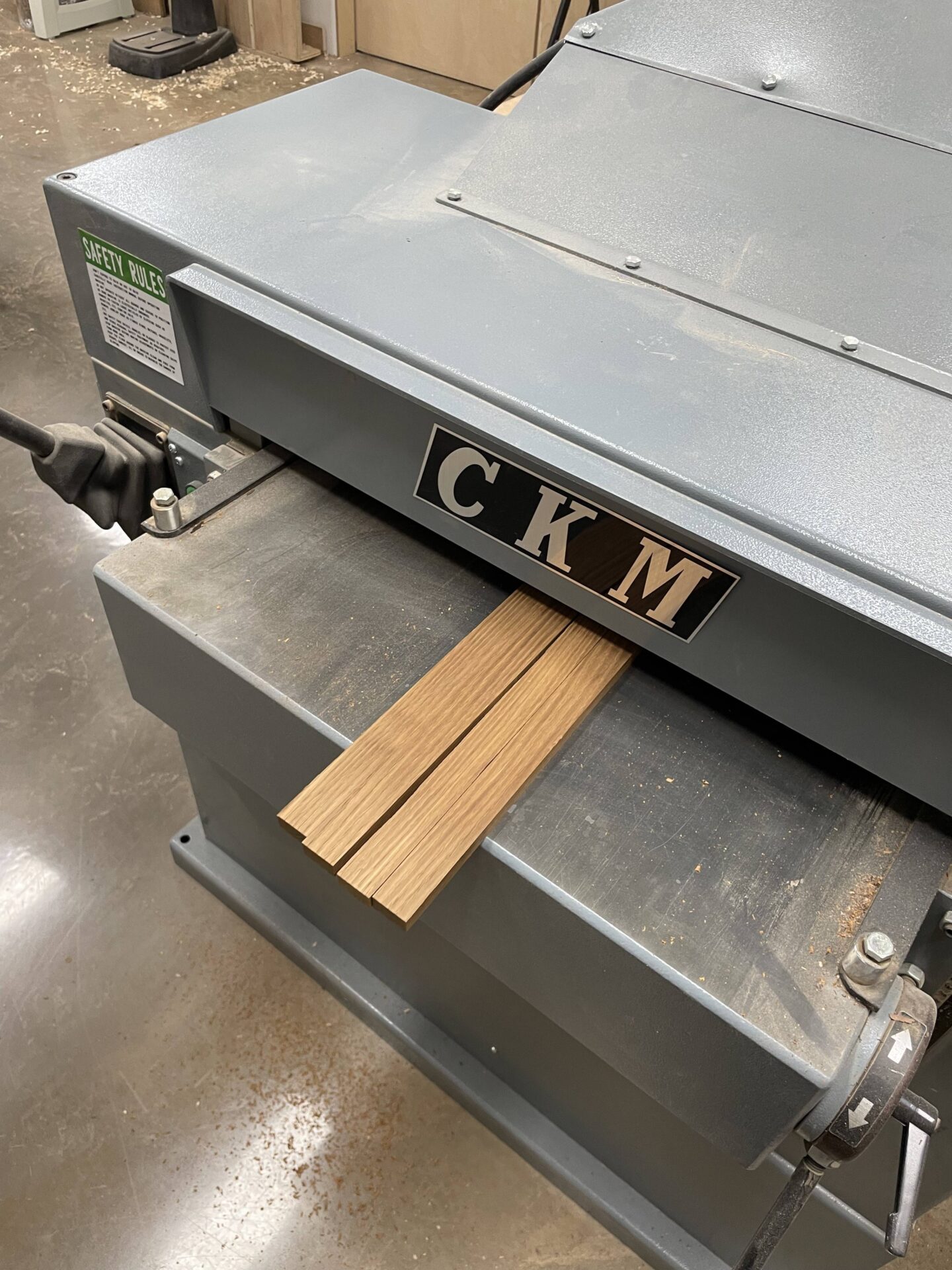

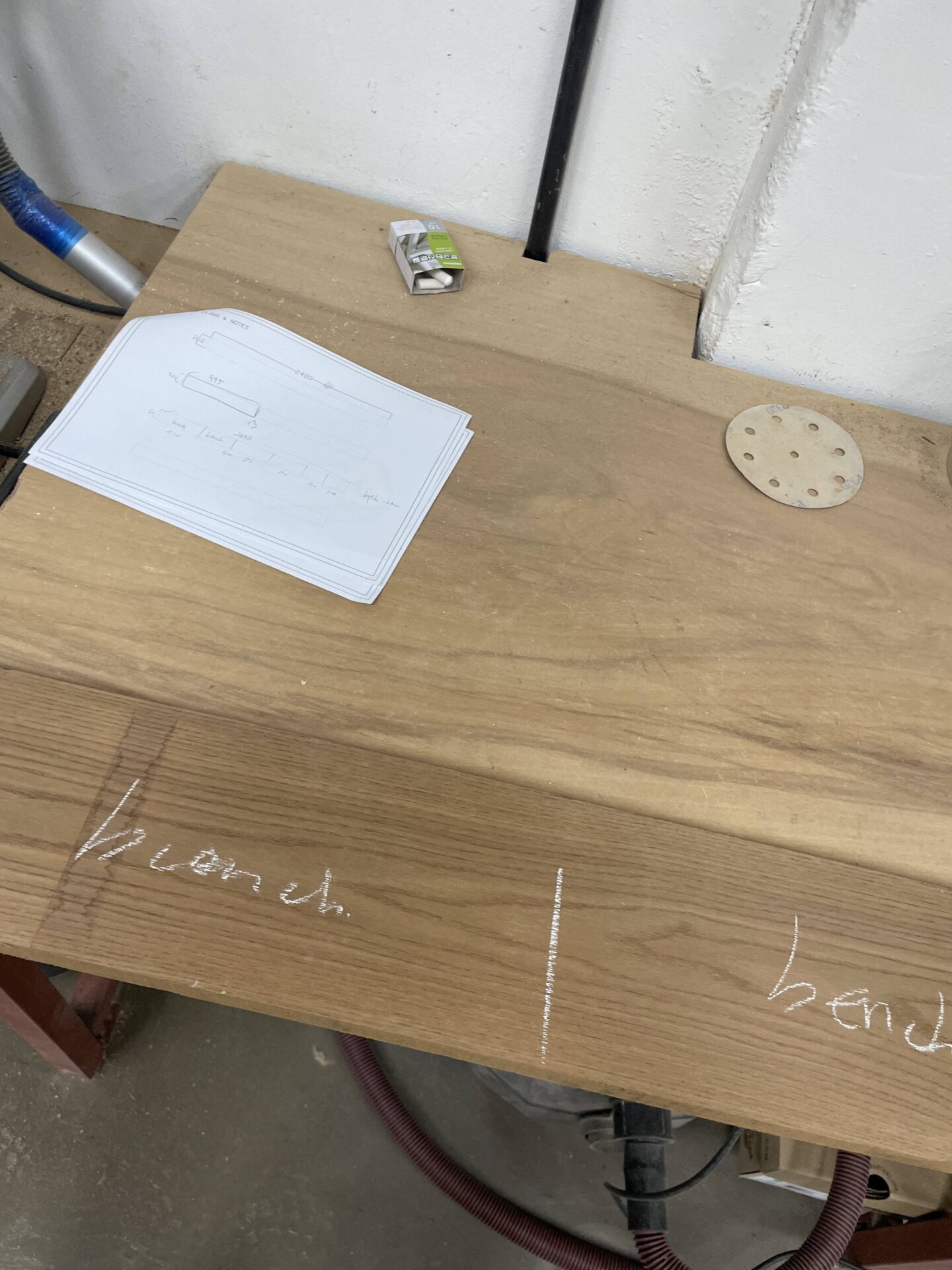

Looking at the drawings and planning the wood cuts. Sometimes, when squaring up warped boards, the material shrinks more than expected. Best to leave a few centimeters of margin before cutting.

Work image

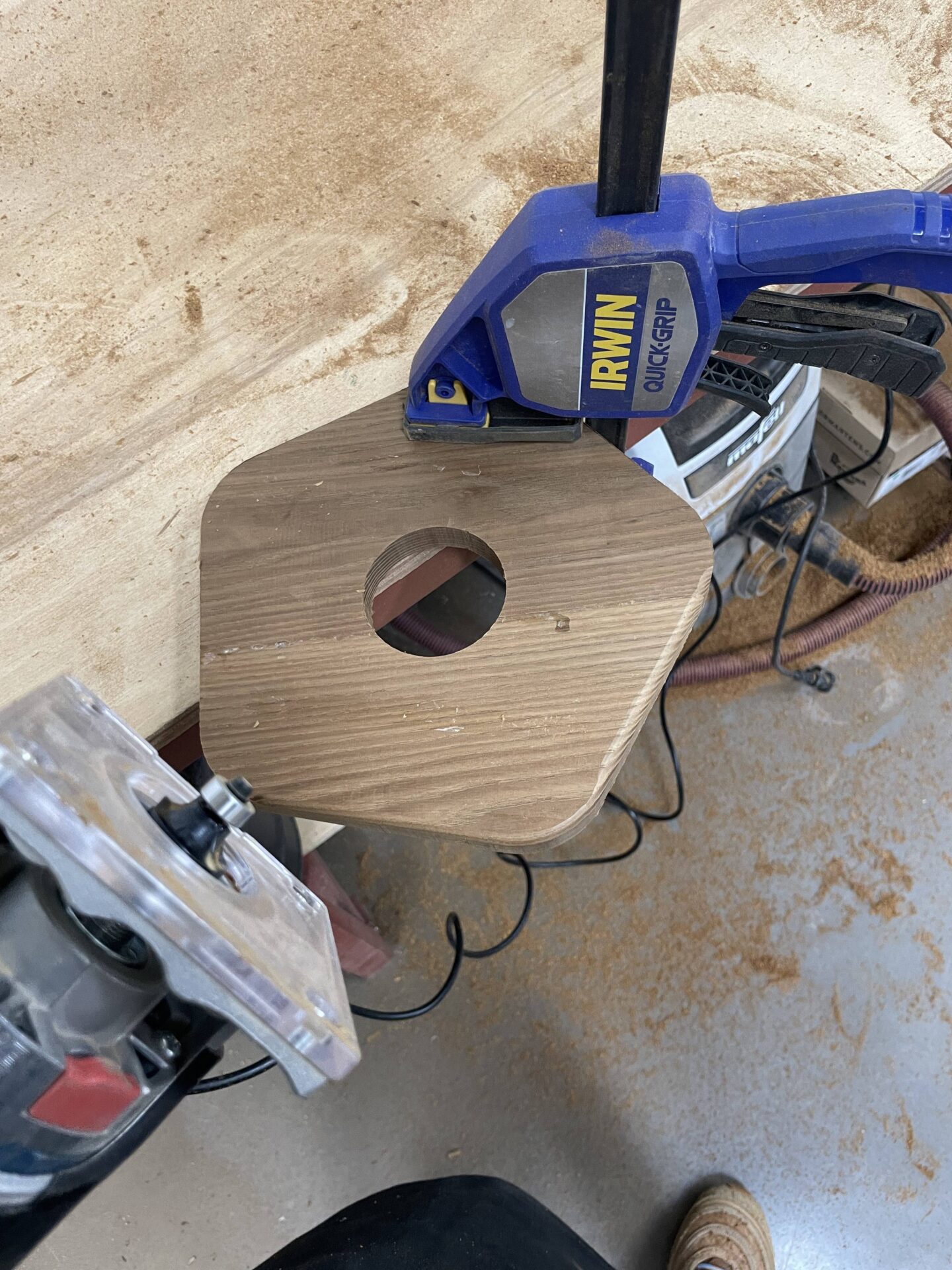

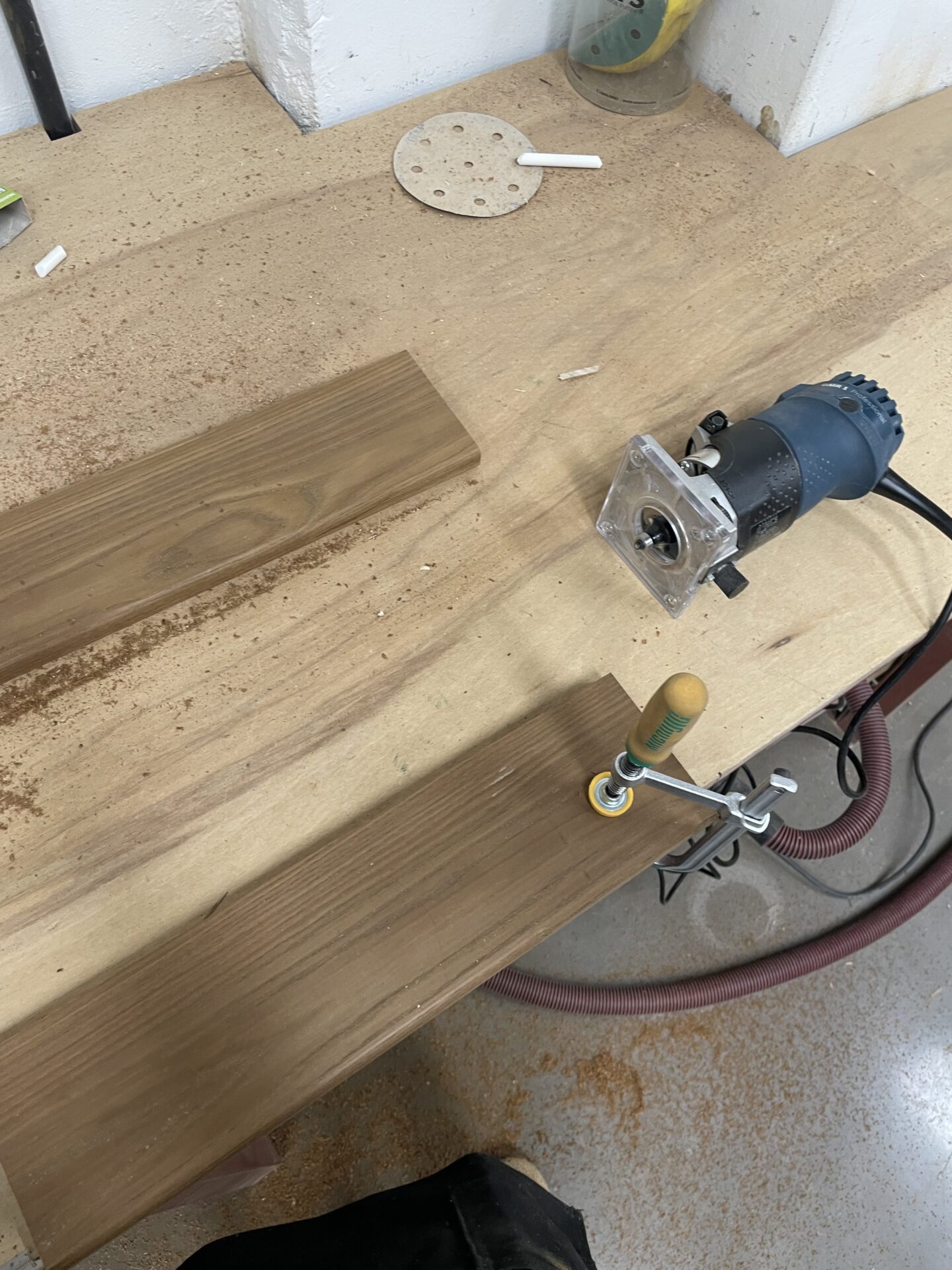

Rounded the cut edges with a trimmer. This time I used charred ash—it smelled amazing while working, had little warping, and its darkened tone was beautiful.

Work image

Making domino chips. Cut them to 10×20 mm and rounded the corners.

Work image

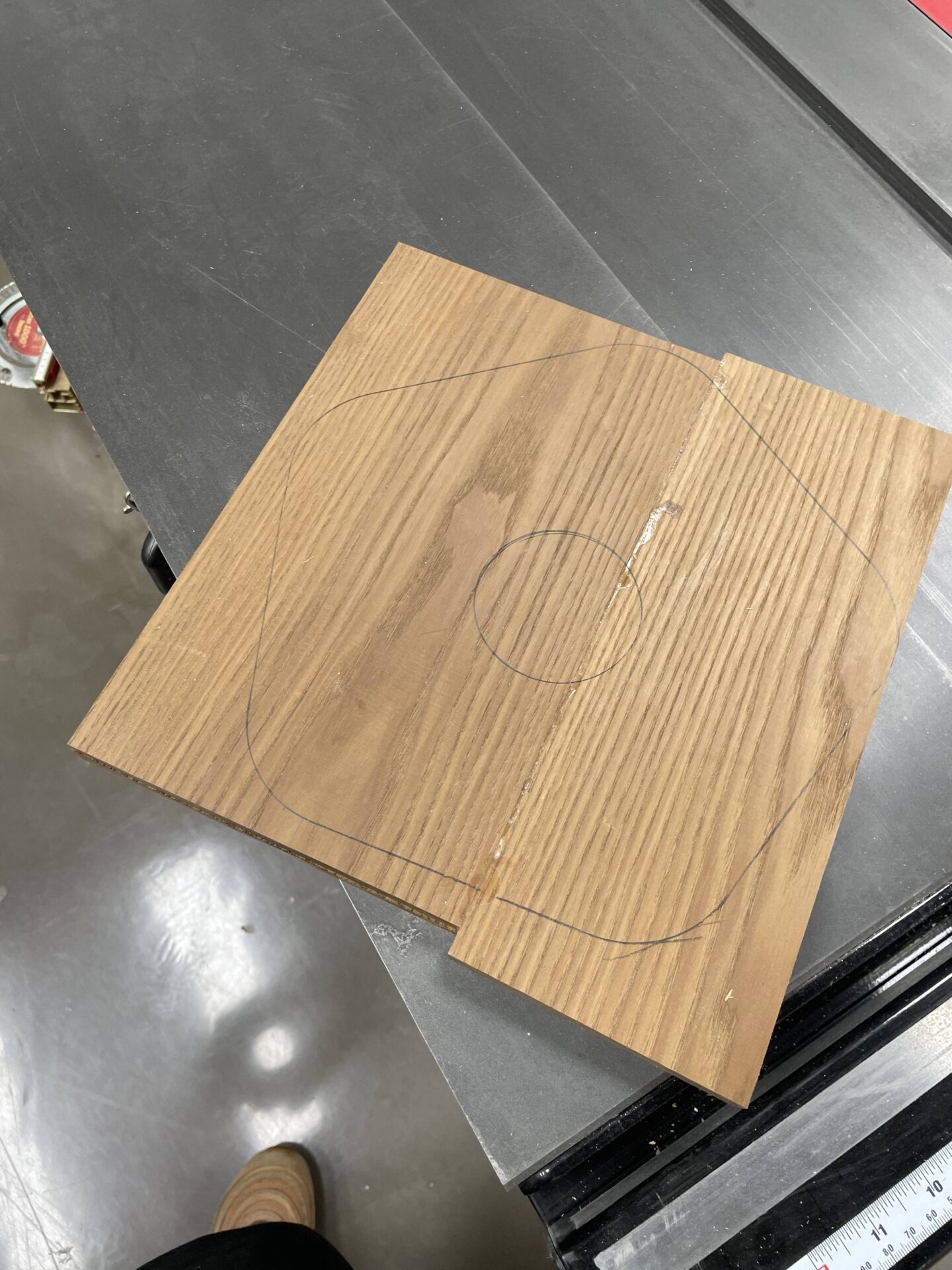

Marking joints on the glued boards using a jig. This jig was small enough to make with a 3D printer.

Work image

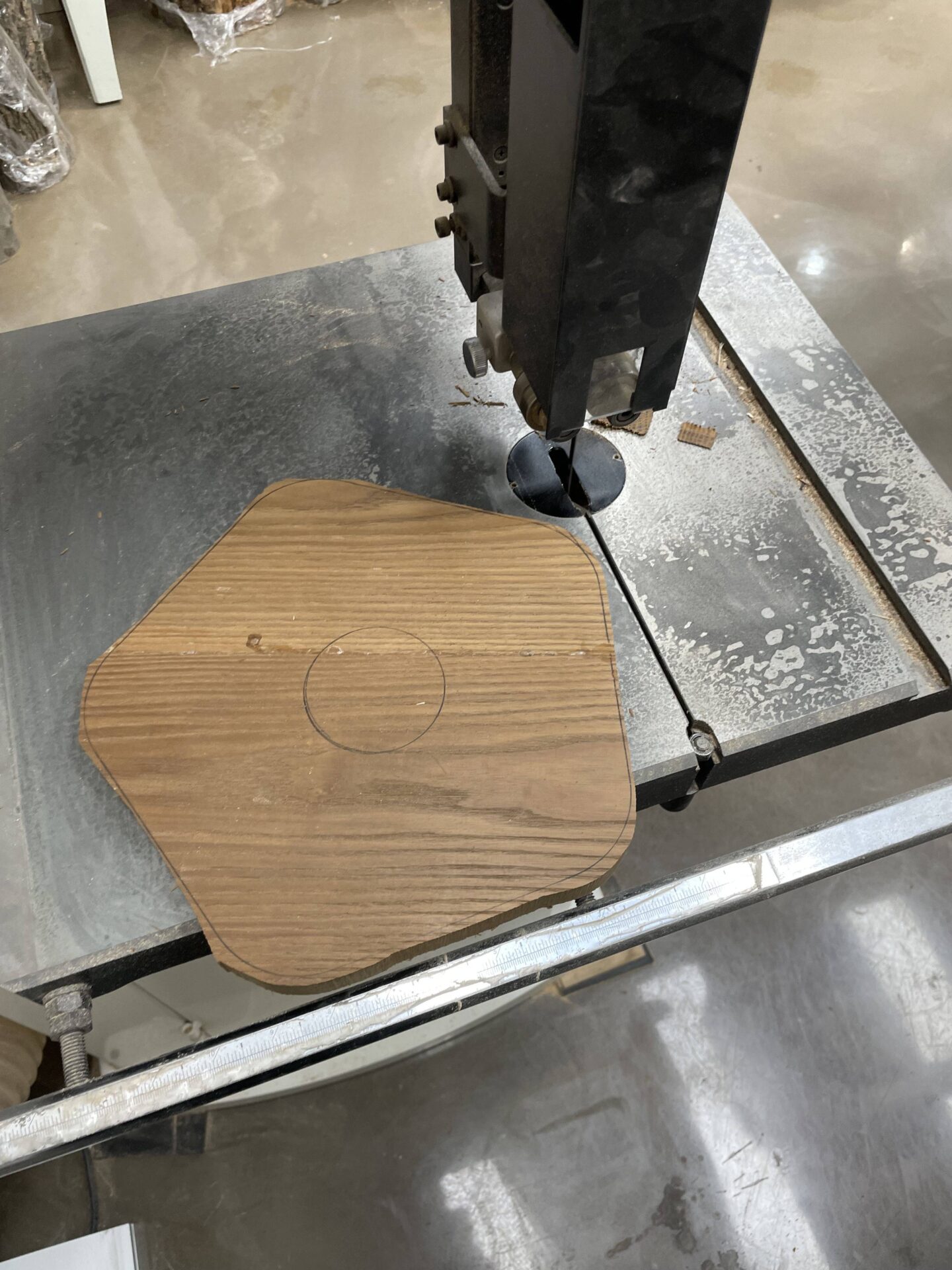

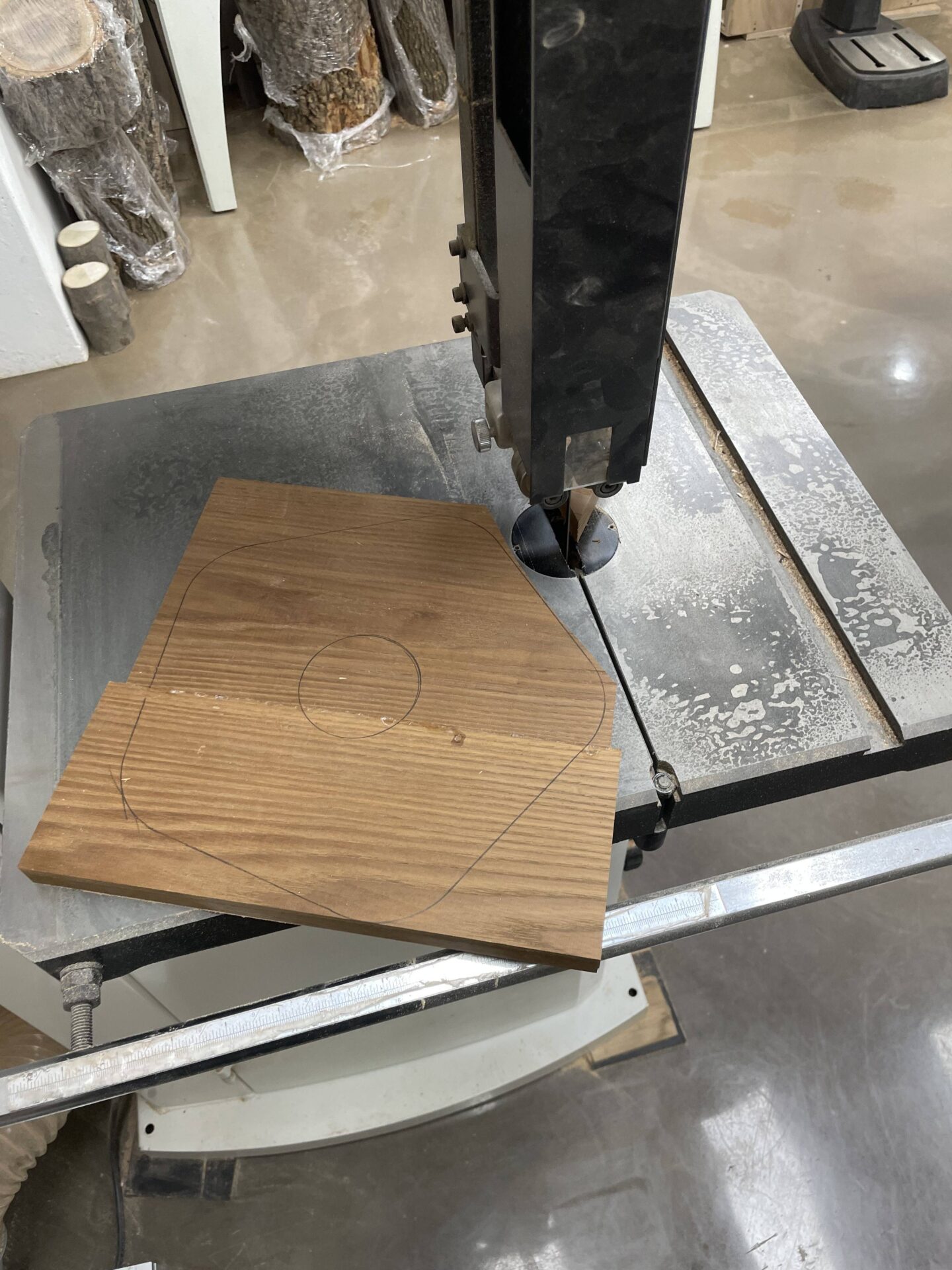

Cutting along the marked lines as close as possible with the band saw.

Work image

Like this.

Work image

I joined four 3D-printed pieces to make the jig, but overlooked one thing: if the jig has uneven height, the trimmer base can’t pass smoothly. Next time, I’ll make sure the jig is all level.

Work image

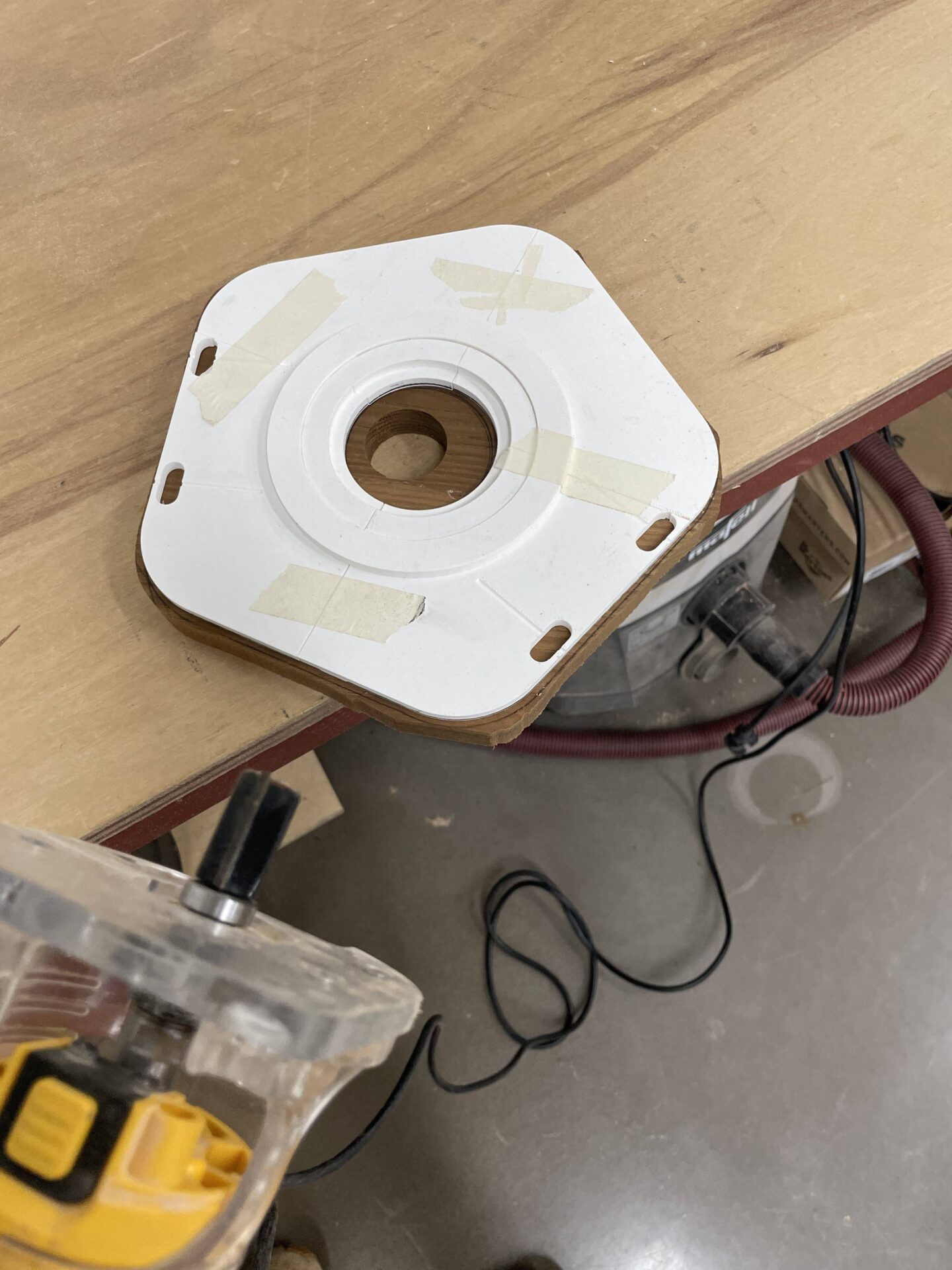

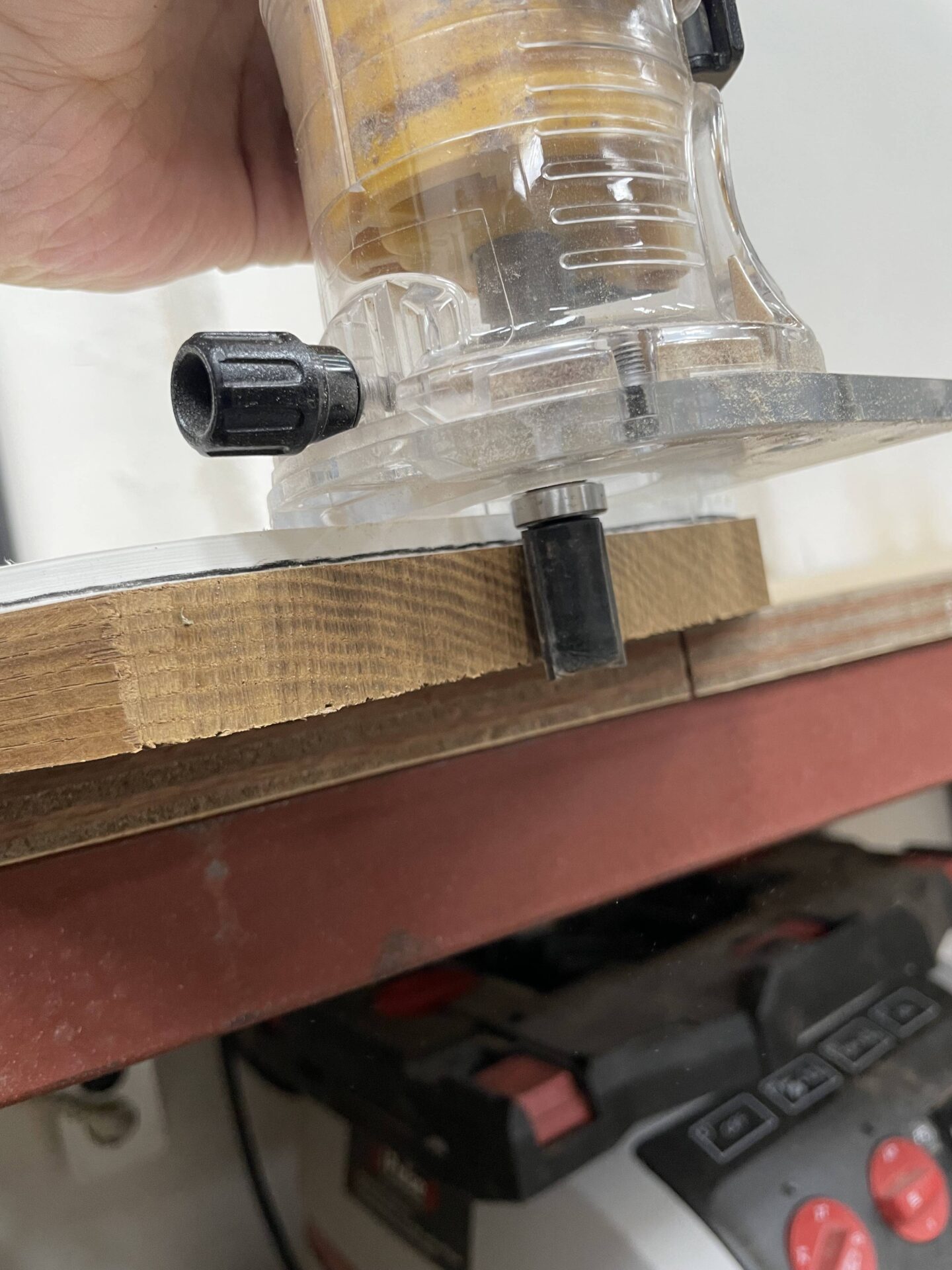

The jig creates a path for the bearing to follow, shaping the wood to match.

Work image

Rounded the corners of the shaped wood. It felt good—like getting closer to the finish.

Work image

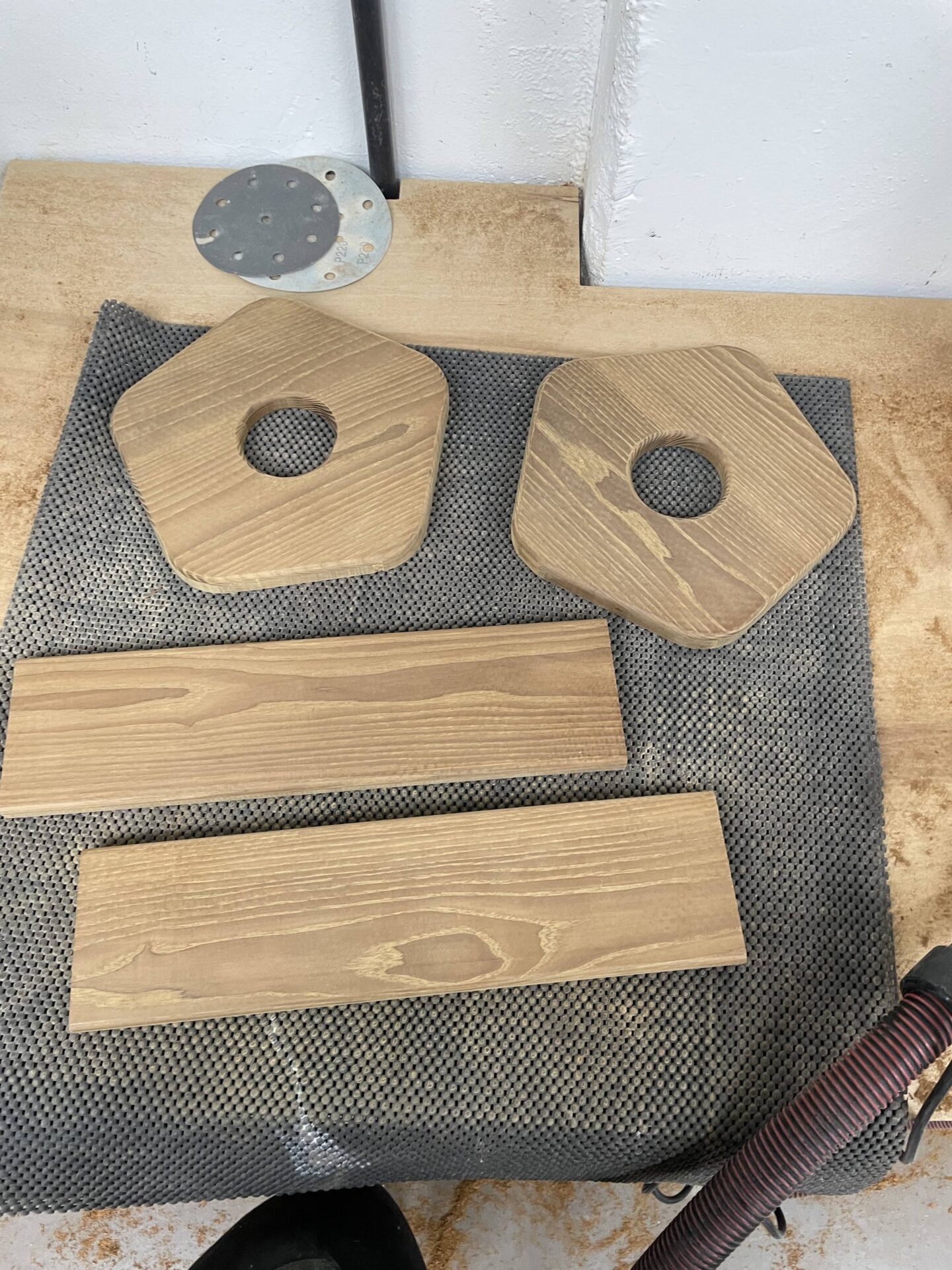

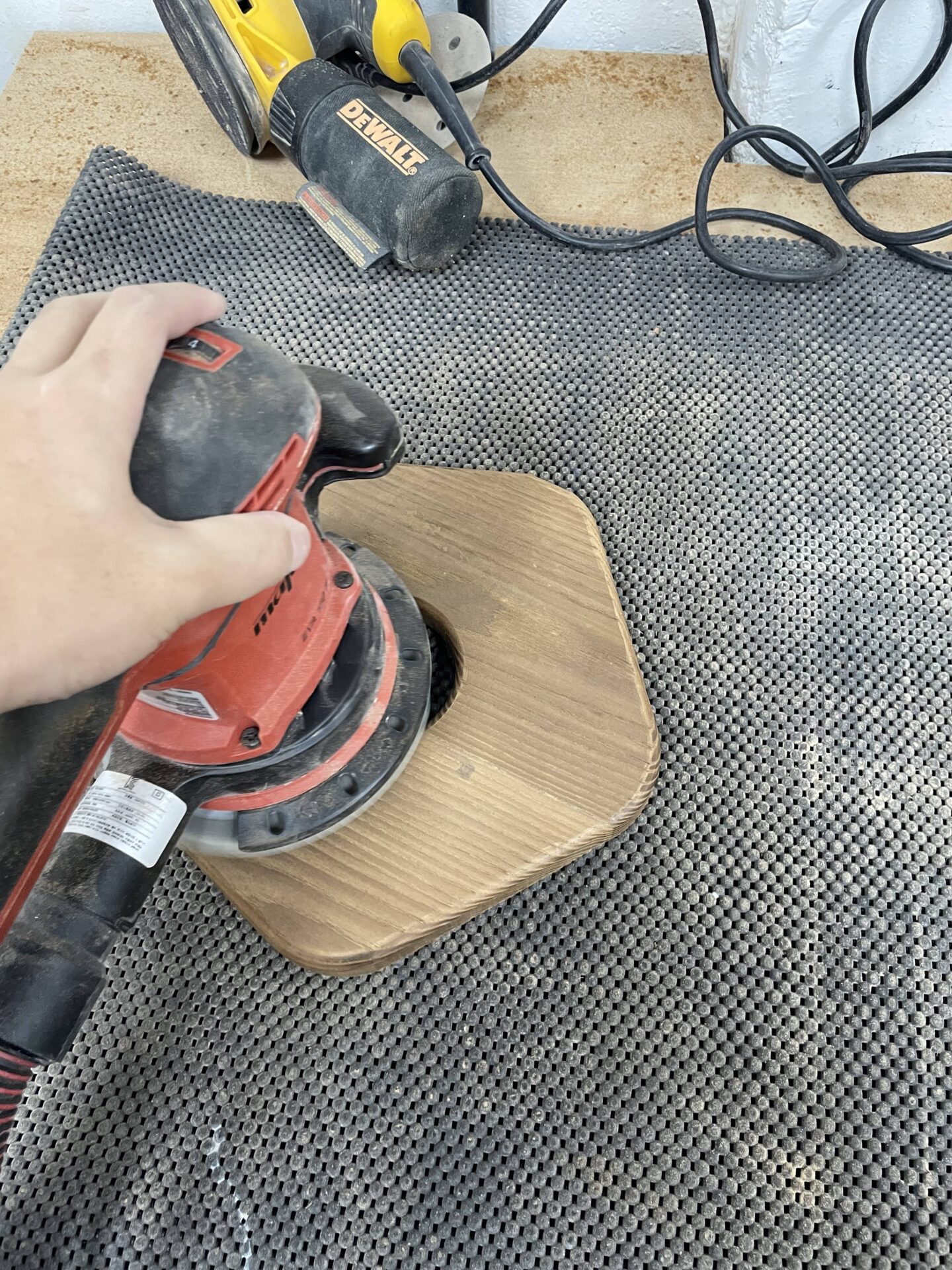

Careful sanding to hide the joint lines.

Work image

Previously, I only sanded twice with #120 and #320 grit, but #120 scratches didn’t fully disappear. Adding #220 grit in between made the quality much better. Interestingly, this charred ash felt smooth even without much sanding.

Work image

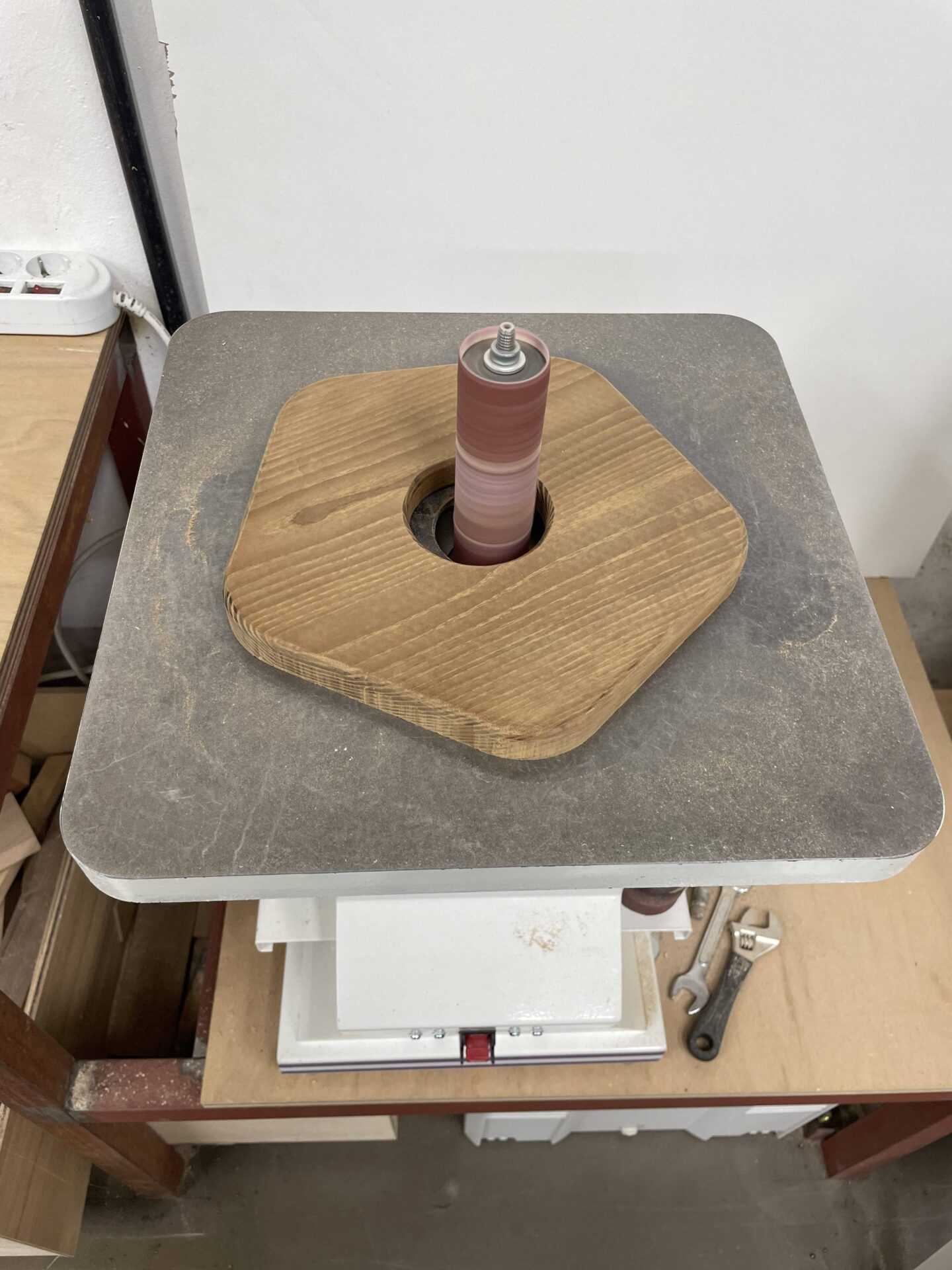

Used a spindle sander for the drilled holes.

Work image

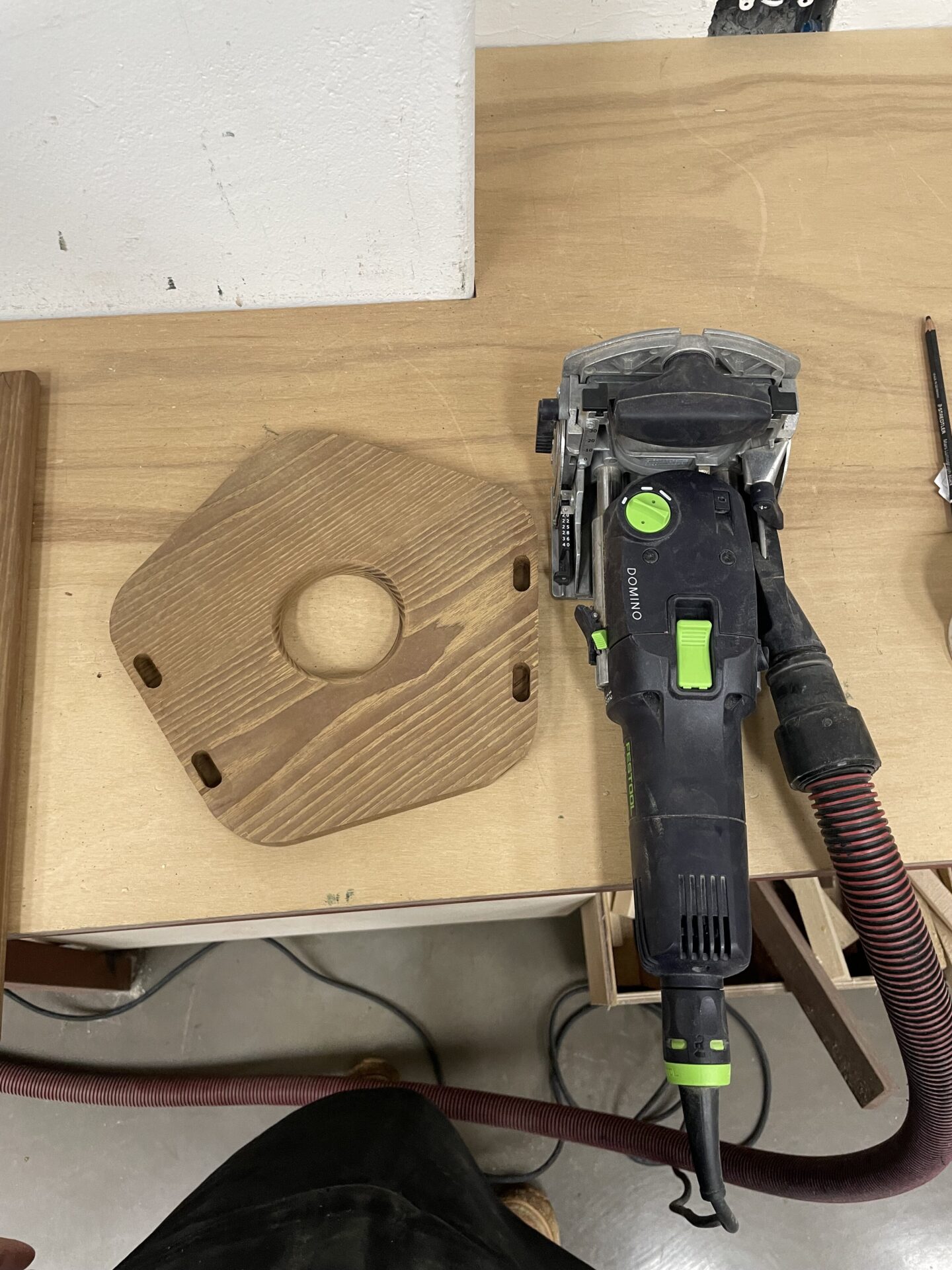

Drilled domino slots with the domino joiner, following the jig marks.

Work image

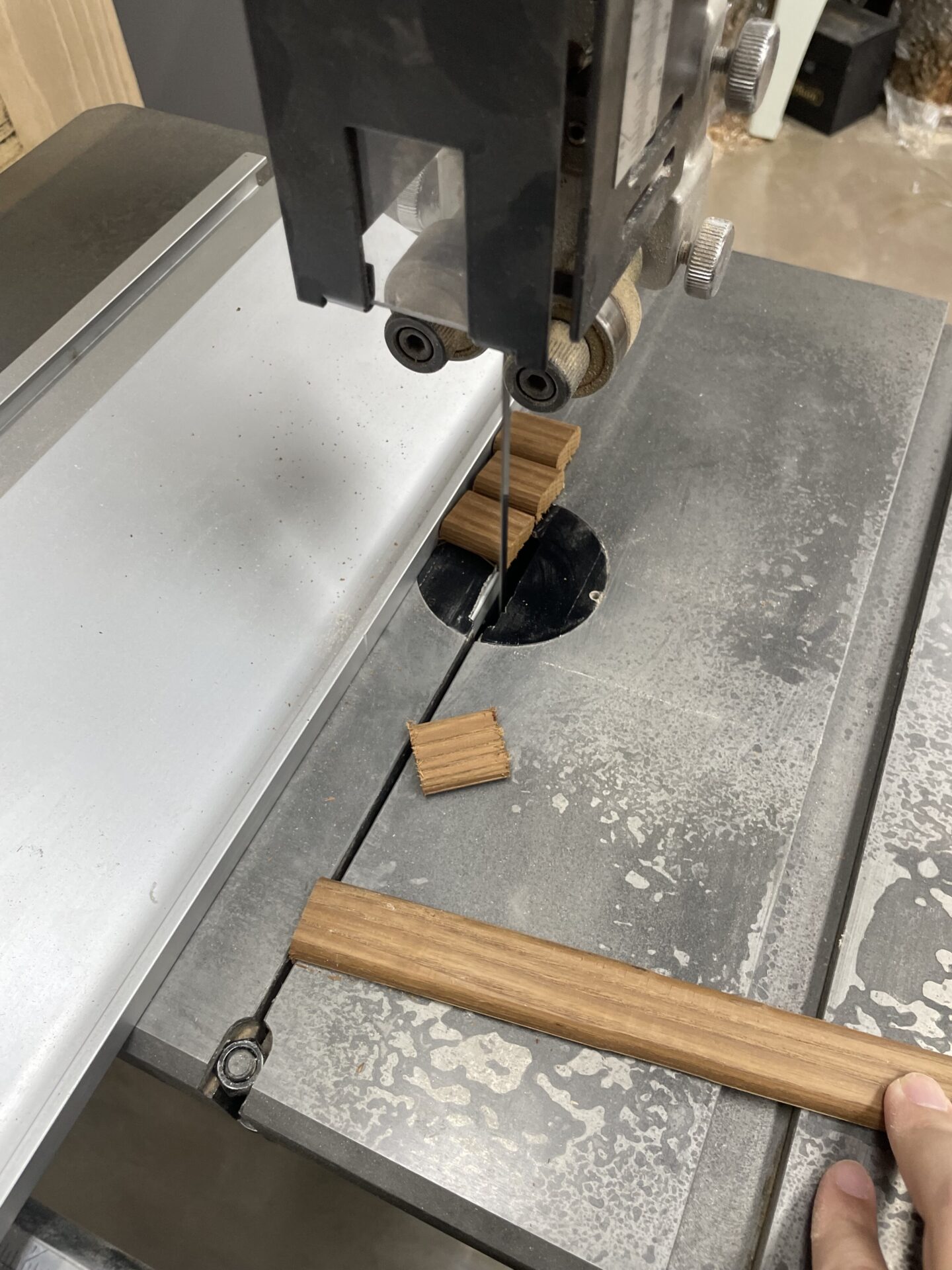

Cut the domino tenons to the right length.

Work image

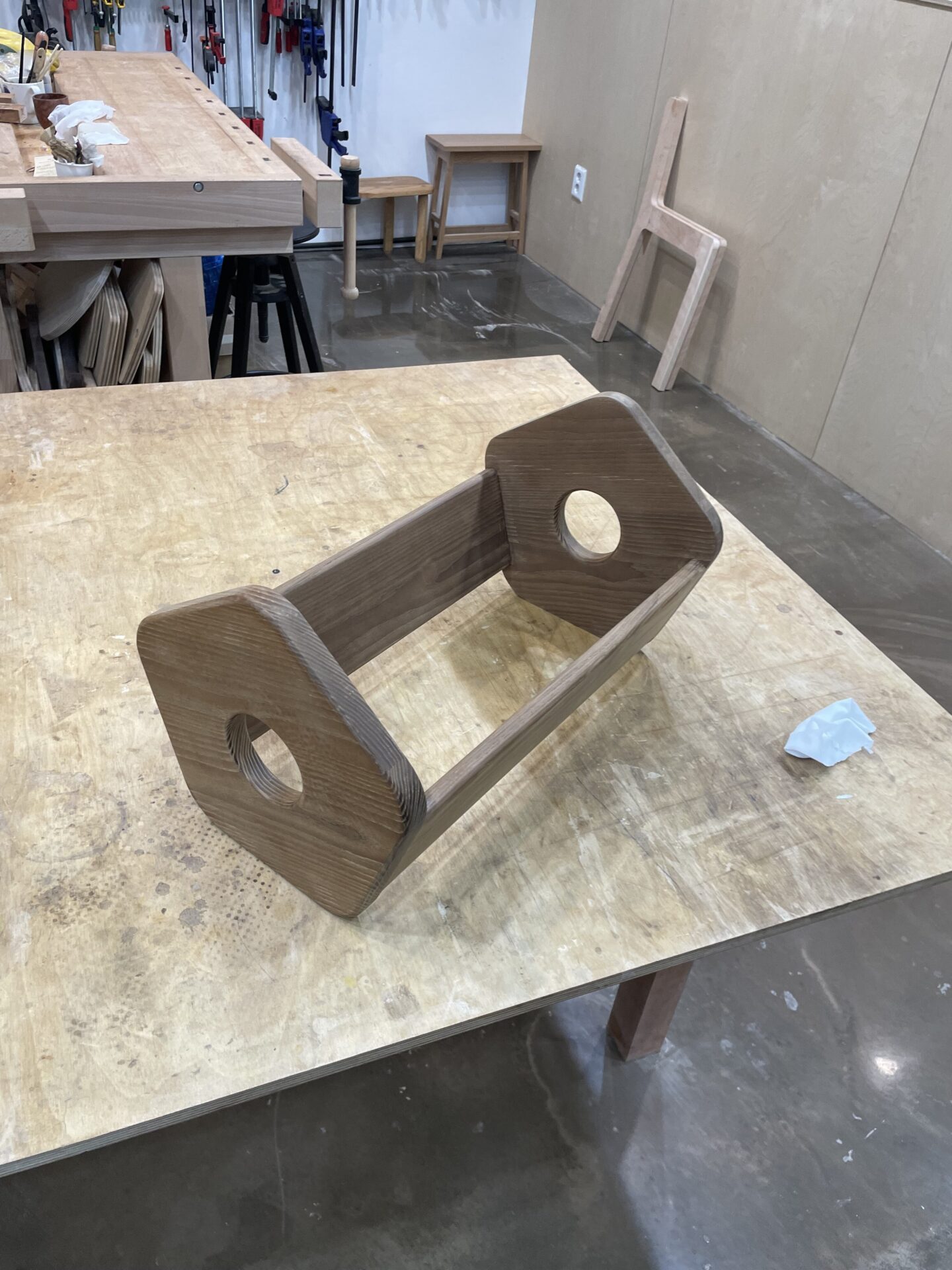

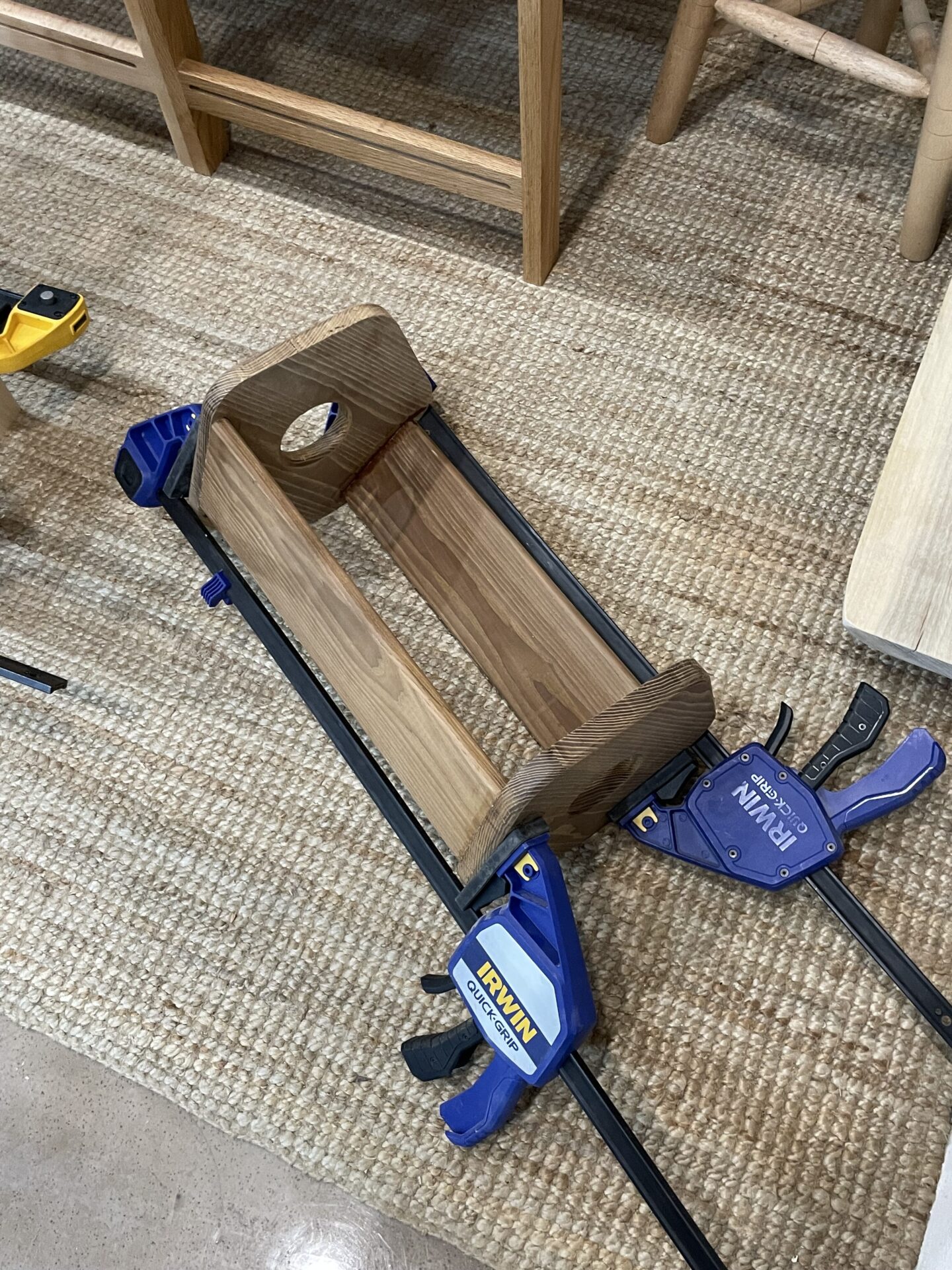

Gluing them together.

Work image

Left it to cure for about a day. Once the glue turns translucent, it’s hardened.

Work image

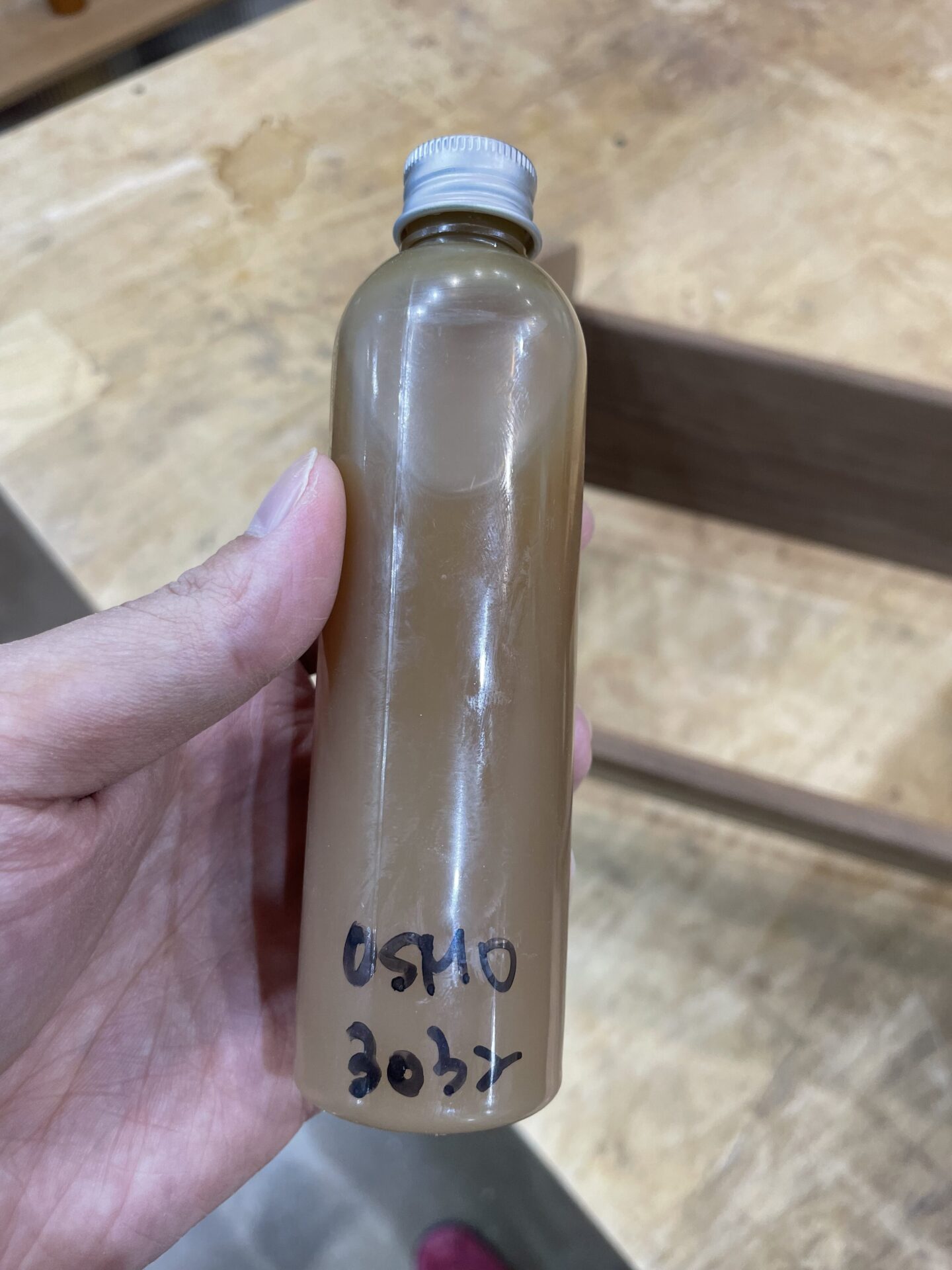

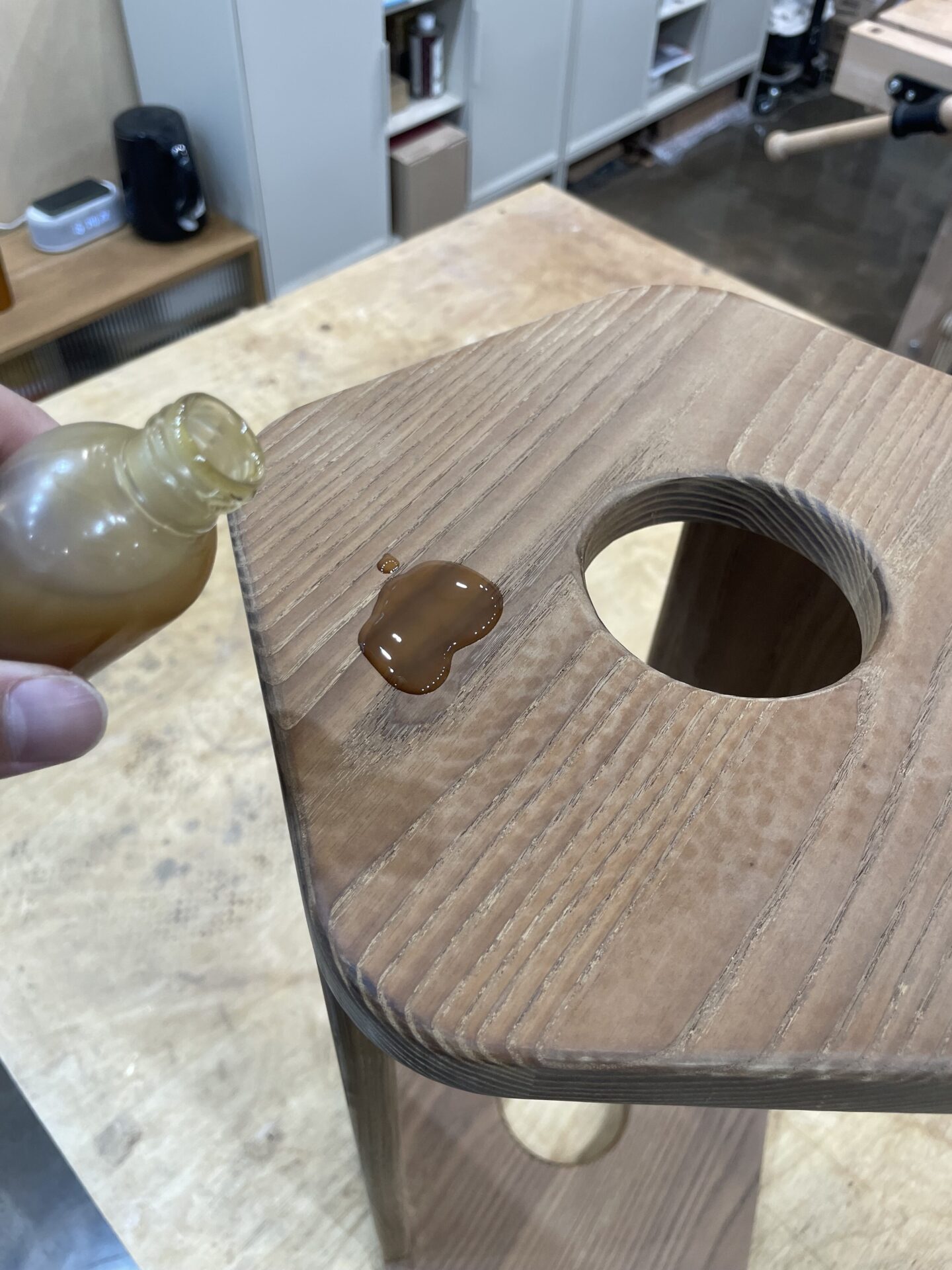

Until now, I’d mostly used Auro oil because it spreads easily, but this time I tried Osmo oil.

Work image

It was much thicker and darker. Needs to be spread quickly before setting.

Work image

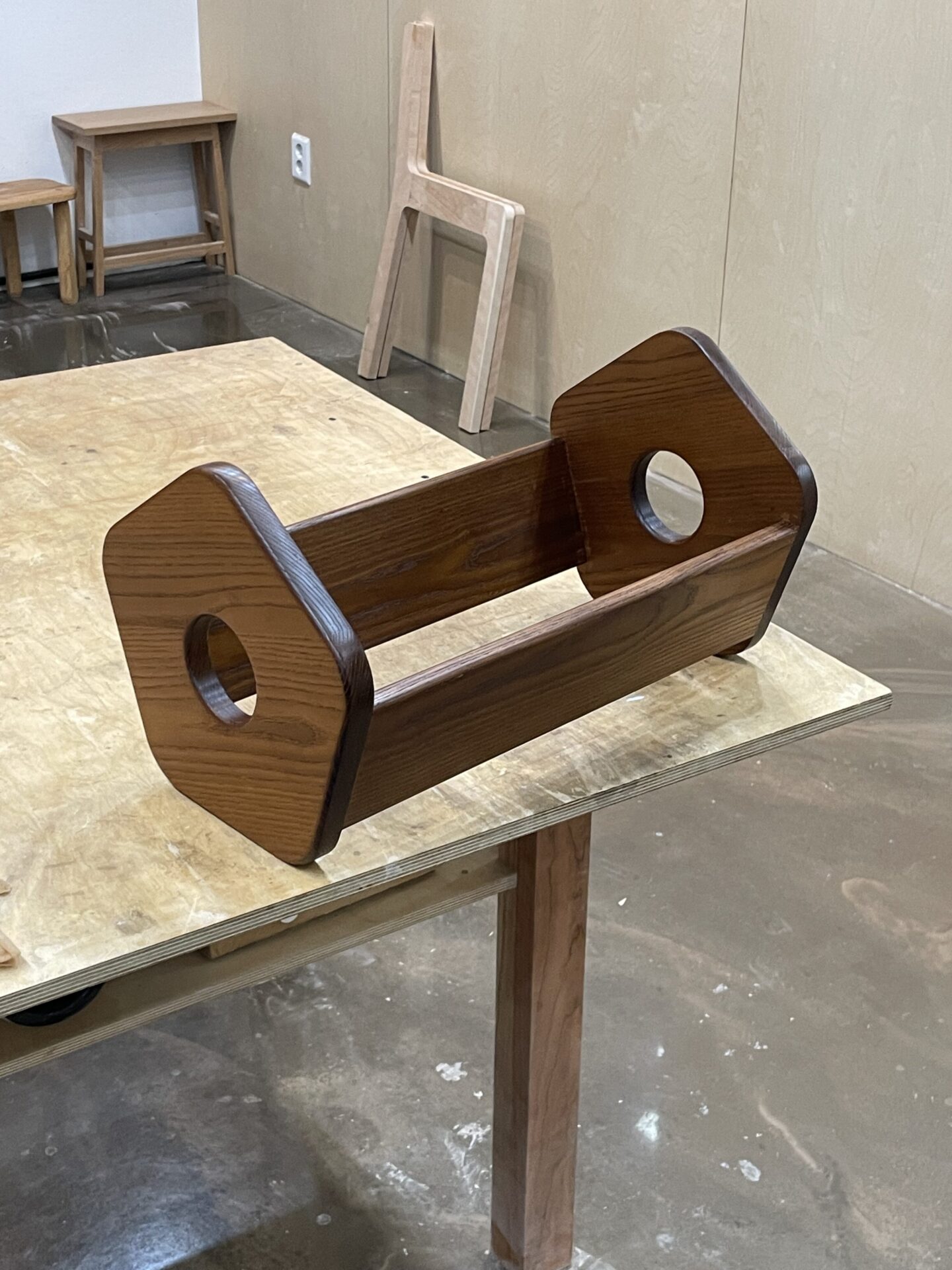

As expected, oil brings out the wood’s beauty. Best to let it sit for a day or two after application.

Work image

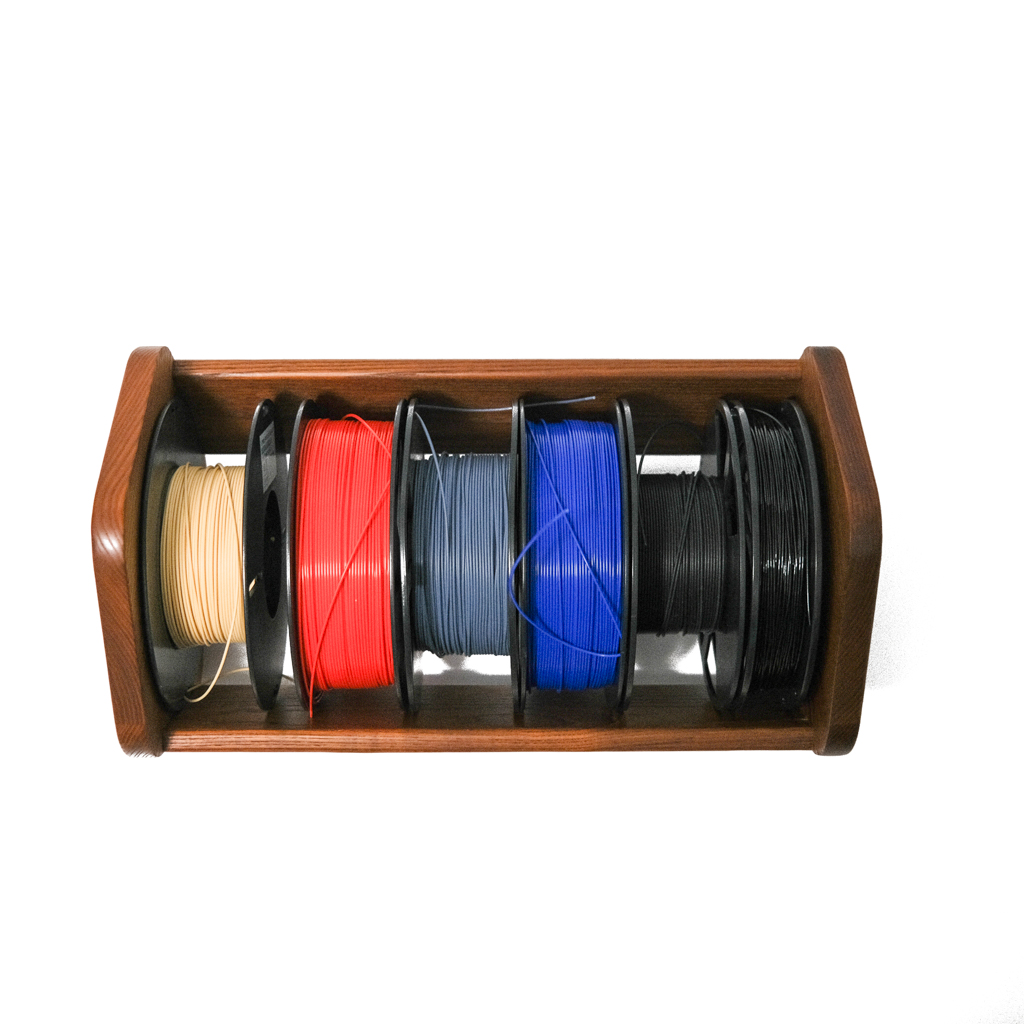

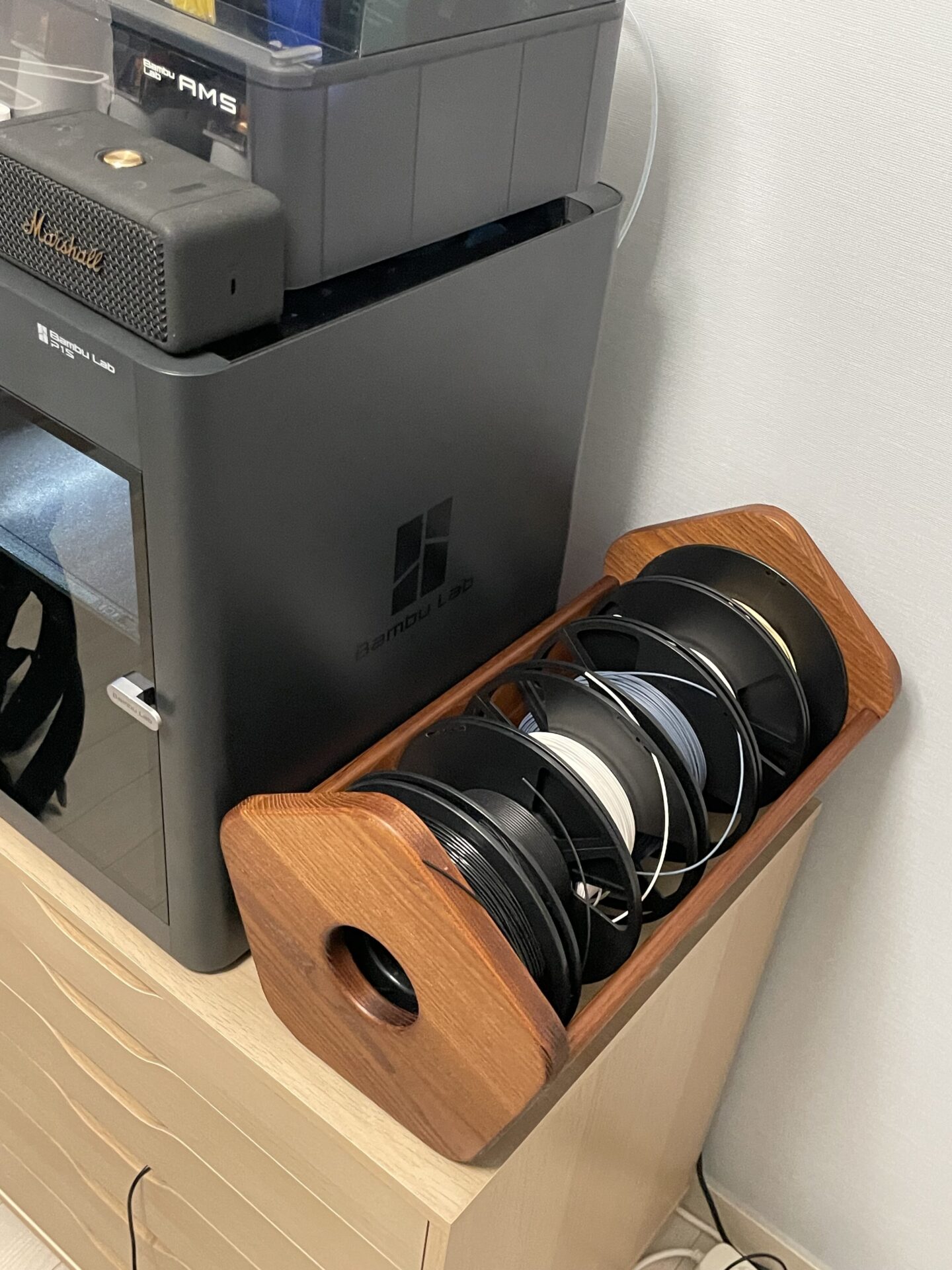

Brought it home after finishing! It works just as designed—holds four spools in the AMS and six more in the basket, for a total of ten. Though, in reality, I always seem to have more than that…
